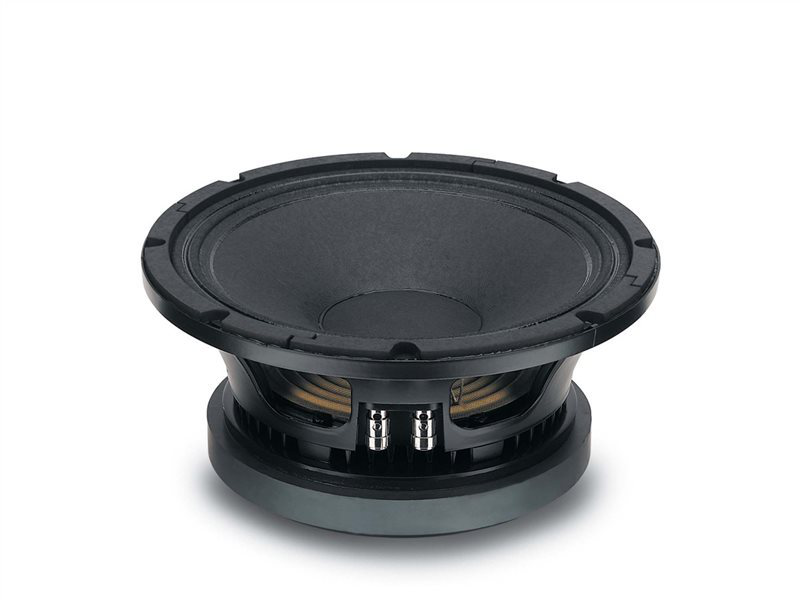

18 Sound 10M600 - 10" Mid-Range Speaker

18 Sound 10M600 - 10" Mid-Range Speaker

$274.95 CAD
$274.95 CAD
Sale Sold out
Shipping calculated at checkout.
  • Nominal Diameter: 260 mm (in)
  • Nominal Impedance: 8 Ω
  • Nominal Power Handling: 400 W
  • Continuous Power Handling: 500 W
  • Sensitivity: 102.0 dB
  • Frequency Range: 80 - 5200 Hz
  • Voice Coil Diameter: 75 mm (3.0 in)
  • Winding Material: Aluminum
Parameters
  • Resonance Frequency: 70 Hz
  • Re: 5.2 Ω
  • Qes: 0.25
  • Qms: 4.5
  • Qts: 0.23
  • Vas: 25.6 dm3 (0.9 ft3)
  • Sd: 350.0 cm2 (54.25 in2)
  • Xmax: 4.0 mm
  • Mms: 32.0 g
  • Bl: 17.6 Txm
  • Le: 1.28 mH
  • EBP: 280 Hz
Design:
  • Surround Shape: M-roll
  • Cone Shape: Curvilinear
  • Magnet Material: Ferrite
  • Woofer Cone Treatment: Weather protected
  • Recommended Enclosure: 20.0 dm3 (0.71 ft3)
Mounting Information:
  • Overall Diameter: 260 mm (10.24 in)
  • Bolt Circle Diameter: 244 mm (9.61 in)
  • Baffle Cutout Diameter: 232.0 mm (9.13 in)
  • Depth: 126 mm (4.96 in)
  • Flange and Gasket Thickness: 14 mm (0.55 in)
  • Net Weight: 7.2 kg
