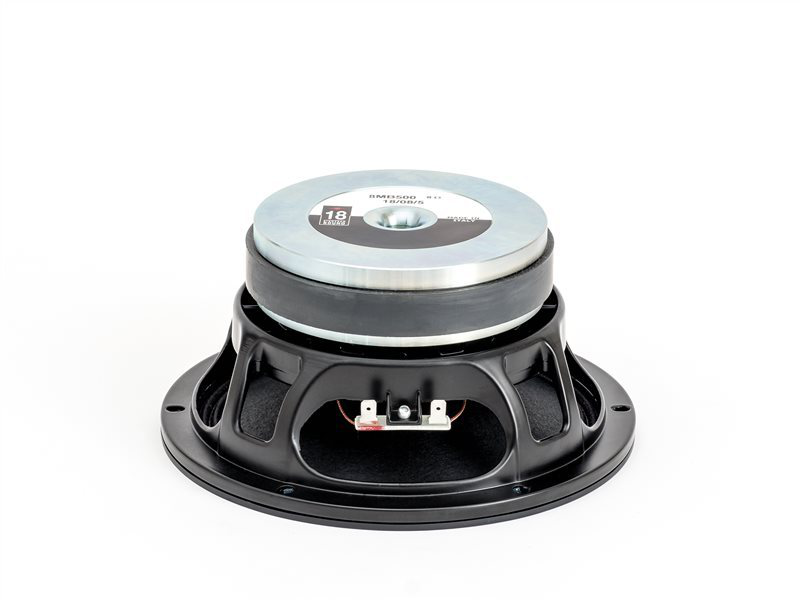

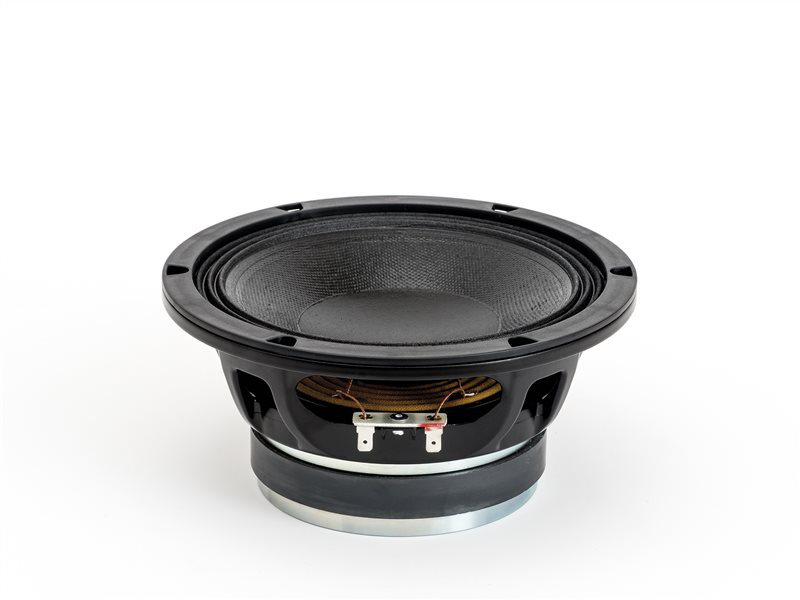

18 Sound 8MB500 - 8" Mid-Bass Speaker - 8 Ohms

18 Sound 8MB500 - 8" Mid-Bass Speaker - 8 Ohms

Regular price $169.95 CAD
Regular price $209.95 CAD Sale price $169.95 CAD
Sale Sold out
Shipping calculated at checkout.
The 8MB500 mid-bass transducer has been developed in response to a specific market requirement for a 200 mm (8 in) midbass driver which combines excellent linearity with good efficiency and power handling capabilities. It is primarily intended for use as a midbass driver in compact 2-way reflex enclosures with a 1 inch compression driver or tweeter but as a result of its versatile characteristics, it can also be used in multiway systems. The curvilinear, treated paper cone is formed using a unique wood pulp composition designed to achieve the best possible rigidity and stiffness. This is carried by a polycotton multiroll surround to provide increased excursion whilst controlling break up modes. The 50 mm (2 inch) aluminum wire voice coil employs same Interleaved Sandwich Voice coil (ISV) technology. It is composed of a high strength fiberglass former carrying windings on both the outer and inner surfaces to achieve a mass balanced coil. This results in an extremely linear motor assembly which, in conjunction with the highly advanced design of the magnetic structure, provides a high force factor or BL. The voice coil is cooled by incorporating airways between the chassis back plate and the magnetic top plate to channel heated air away from the voice coil and gap and dissipate it. In-house FEA CAD facilities have been used to optimize flux density and BL factor within the air gap. Due to the increasing use of sound systems at outdoor events, the 8MB500 ability to perform in humid environments is a key feature. This has been achieved using an exclusive cone treatment which renders the cone resistant to humidity.


  • 95 dB SPL 1W / 1m average sensitivity
  • 51 mm (2 in) Interleaved Sandwich Voice coil (ISV)
  • 400 Watt program power handling
  • Triple roll suspension for increased motion control
  • Weather protected treated cellulose cone
  • Lightweight diecast aluminum basket design
  • Suitable for compact two way and multiway systems
  • Nominal Diameter: 200 mm (in)
  • Nominal Impedance: 8 Ω
  • Minimum Impedance: 5.8 Ω
  • Nominal Power Handling: 280 W
  • Continuous Power Handling: 400 W
  • Sensitivity: 95.0 dB
  • Frequency Range: 60 - 4500 Hz
  • Voice Coil Diameter: 51 mm (2.0 in)
  • Winding Material: Aluminum
  • Resonance Frequency: 74 Hz
  • Re: 5.1 Ω
  • Qes: 0.51
  • Qms: 2.66
  • Qts: 0.43
  • Vas: 21.5 dm3
  • Sd: 230.0 cm2 (35.65 in2)
  • Xmax: 6.0 mm
  • Mms: 17.0 g
  • Bl: 9.0 Txm
  • Le: 0.6 mH
  • EBP: 145 Hz
  • Surround Shape: Triple roll
  • Cone Shape: Curvilinear
  • Magnet Material: Ferrite
  • Woofer Cone Treatment: Weather protected
  • Recommended Enclosure: 25.0 dm3 (0.88 ft3)
  • Recommended Tuning: 80 Hz
Mounting Information
  • Overall Diameter: 210 mm (8.27 in)
  • Bolt Circle Diameter: 195 mm (7.68 in)
  • Baffle Cutout Diameter: 186.0 mm (7.32 in)
  • Depth: 99 mm (3.9 in)
  • Flange and Gasket Thickness: 14 mm (0.55 in)
  • Net Weight: 3.4 kg (7.5lb)
