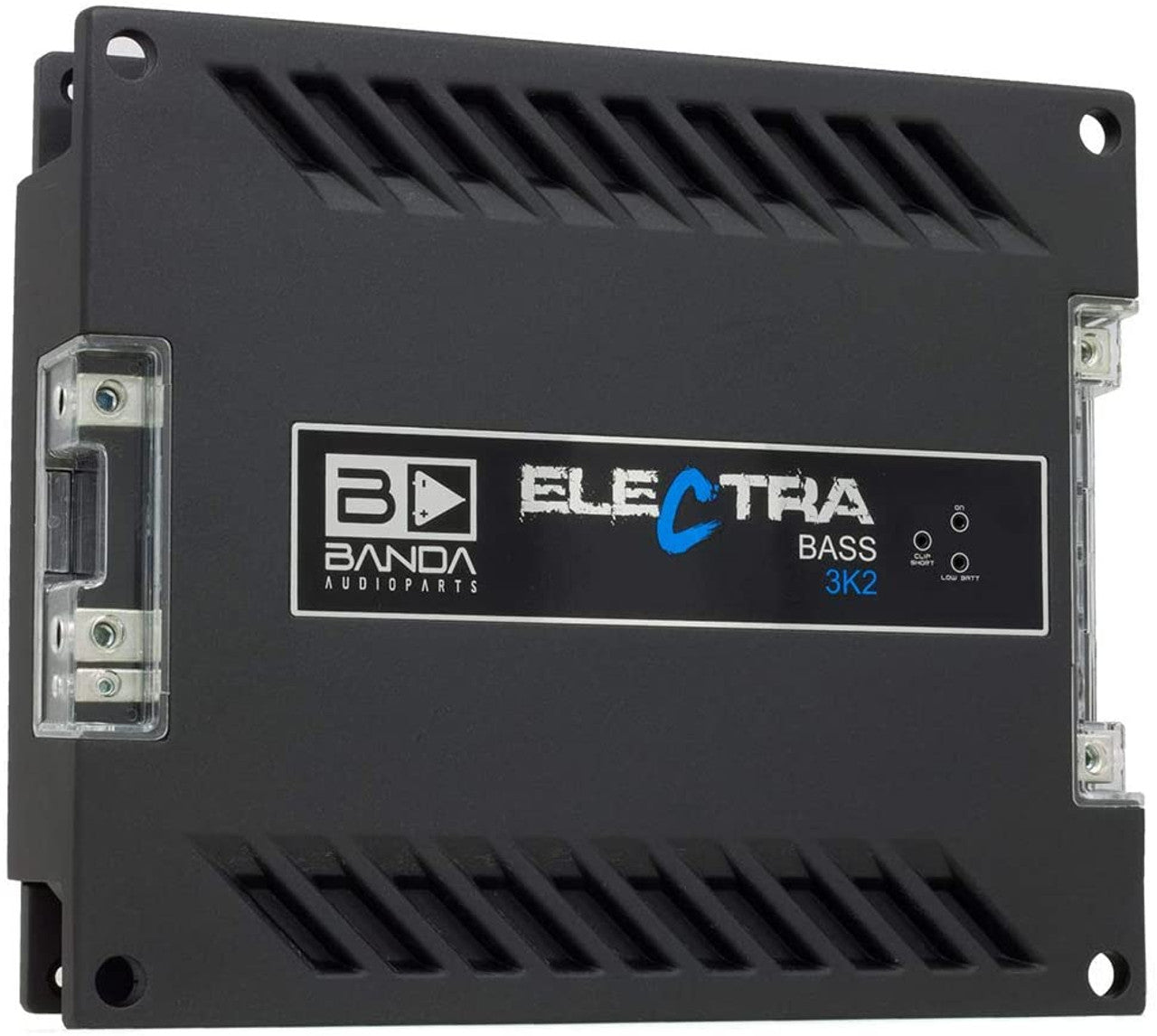

BANDA ELECTRA BASS 3K MONO AMPLIFIER
BANDA ELECTRA BASS 3K MONO AMPLIFIER
Couldn't load pickup availability
The ELECTRA line was developed especially for those looking for an incomparable bass. It has a frequency response of 5 to 500Hz (-3dBs). Because of this, ELECTRA will only play Subwoofers, Bass and part of the mid frequencies. The BASS BOOST at 45Hz feature is a differential, further reinforcing the bass of your system. Designed in a 100% aluminum chassis, it works with 3000 WRMS power with 1 input channel for connection and 2 Ohms impedance. It has very low harmonic distortion (less than 1%) and Clipping indicator, forced ventilation and short circuit protection. In addition, it has a bold and clean design, matching any sound system.
Features:
- High grade materials for exceptional performance
- Superior in durability and reliability
Specifications:
- Channel: 1
- Wattage: 3000 watts
- Impedance: 1 ohm or 2 ohm
- Input Voltage: 9-15V
- Input Impedance: 100K ohm
- Input Sensitivity: 140mV - 8V
- SNR: 86dB
- Frequency Response: 5 to 500Hz (-3dBs)
- HPF (Subsonic): 20 to 80Hz @ 12dB/octave Linkwitz-Riley
- LPF (Crossover): 80 to 500Hz @ 12dB/octave Linkwitz-Riley
- Fuse: 150A
- Current at Rest: 2A
- Average Current Draw: 315A
- Power Wire Gauge: 21 mm / 4 AWG
- Speaker Wire Gauge: 2 x 4 mm / 2 x 11 AWG
