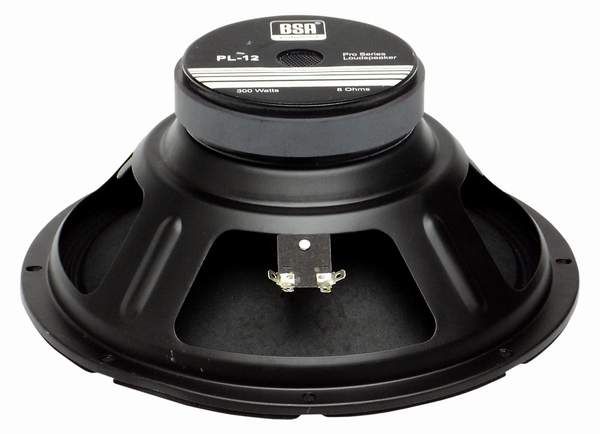

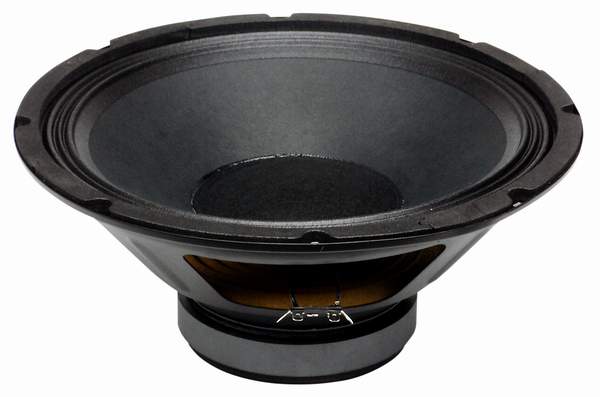

BSA PL-12 12" Mid Range Driver

Nominal impedance 8 Ohm
Rated power 300 W
Musical power 600 W
Sensitivity @ 1W , 1m 98 dB
Frequency range 50 - 4500 Hz
Voice Coil DC Resistance RE 6,3 Ohm
Resonance Frequency FS 39,6 Hz
Mechanical Q Factor QMS 11,32
Elektrical Q Factor QES 0,55
Total Q Factor QTS 0,53
Mechanical Moving Mass MMS 33,5 g
Equivalent Acoustic Volume VAS 129,821 L
Maximum Linear Displacement XMAX 1,1 mm
Reference Effi ciency EFF 2,91 %
Diaphragm Area SD 507 cm2
Voice Coil Inductance @ 1kHz LE 0,58 mH
Total Weight 3,5 Kg
