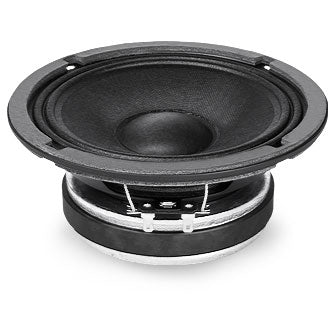

FAITALPRO 6FE200 8 OHM

FAITALPRO 6FE200 8 OHM

$79.95 CAD
$79.95 CAD
Sale Sold out
Shipping calculated at checkout.
Nominal Specifications
Nominal Diameter 160 mm (6 in)
Overall Diameter 167.4 mm (6.59 in)
Bolt Circle Diameter 154 mm (6.06 in)
Baffle Cutout Diameter 144 mm (5.67 in)
Depth 77 mm (3.03 in)
Flange and Gasket Thickness 8 mm (0.31 in)
Net Weight 2 kg (4.4 lb)
Shipping Box
(Single Carton Box)		 190 x 185 x 103 mm
(7.5 x 7.3 x 4.1 in)
Shipping Weight 2.2 kg (4.9 lb)


Technical Parameters
Nominal Impedance 8 Ohm
Minimum Impedance 6.8 Ohm
AES Power Handling (1) 130 W
Maximum Power Handling (2) 260 W
Sensitivity (1W/1m) 95 dB
Frequency Range 85÷6000 Hz
Voice Coil Diameter 37 mm (1.46 in)
Winding Material Al
Former Material Kapton
Winding Depth 12 mm (0.47 in)
Magnetic Gap Depth 8 mm (0.31 in)
Flux Density 1 T
Magnet Ferrite Ring
Basket Material Steel
Demodulation No
Cone Surround (3) M-Roll
NET Air Volume filled by Loudspeaker 0.45 dm^3 (0.016 ft^3)
Spider Profile 1x constant height waves
Thiele and small parameters
Fs 120 Hz
Re 5.9 Ohm
Qes 0.75
Qms 6.2
Qts 0.67
Vas 3.6 dm^3 (0.13 ft^3)
Sd 131 cm^2 (20.23 in^2)
Xmax (4) 4.67 mm
Xdamage (5) 10.4 mm
Mms 11.5 g
Bl 8.2 N/A
Le 0.4 mH
Mmd 9.8 g
Cms 0.15 mm/N
Rms 1.4 kg/s
Eta Zero 0.80 %
EBP 160 Hz
