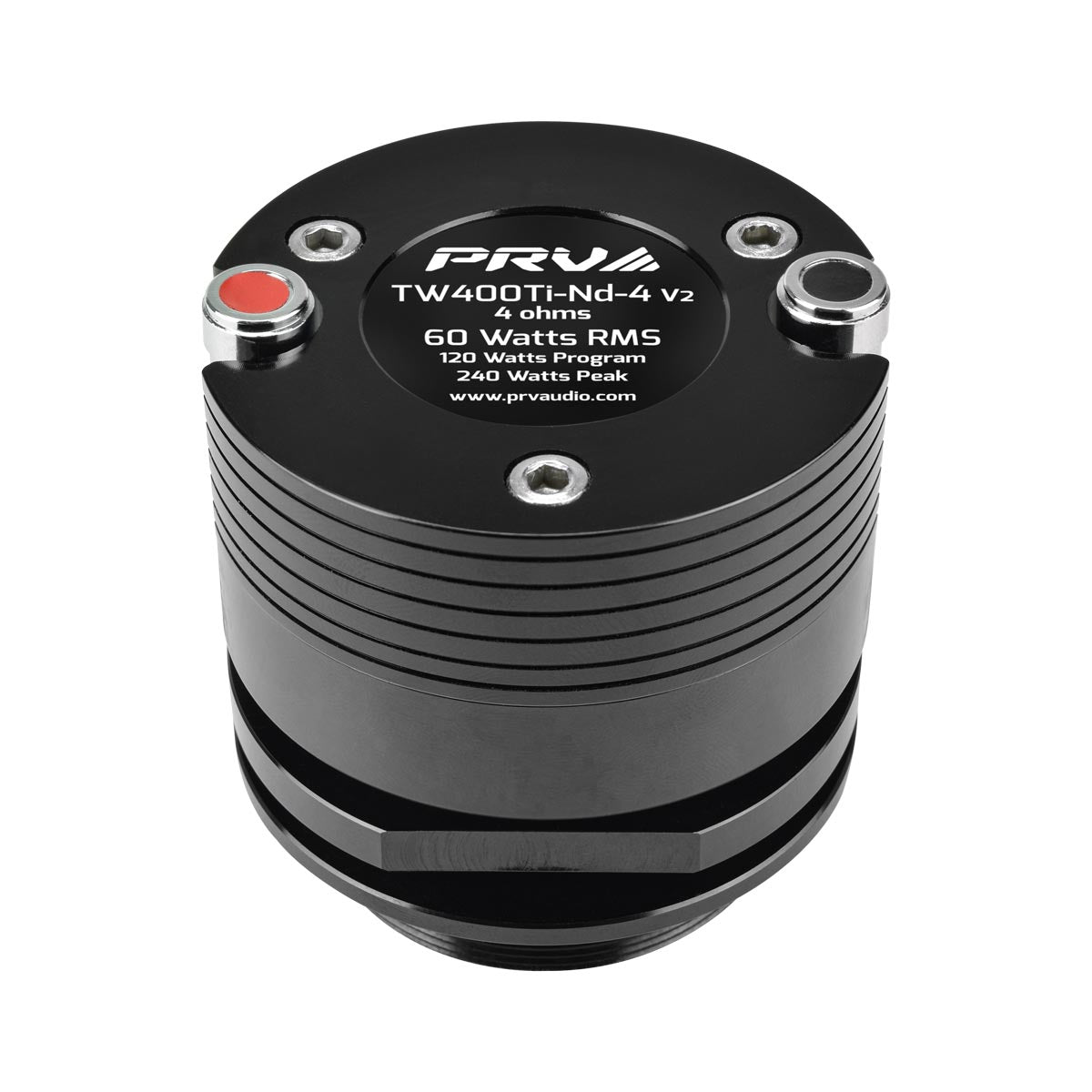

PRV Audio TW400TI-ND-4 V2 1" Bullet Super Tweeter 60W RMS - 4 Ohms (Pair)
PRV Audio TW400TI-ND-4 V2 1" Bullet Super Tweeter 60W RMS - 4 Ohms (Pair)
Couldn't load pickup availability
PRV Audio’s TW400Ti-Nd-4 super tweeter (also referred to as a bullet tweeter) is designed to add high output, high frequency response to any speaker system. The titanium diaphragm combines with the durable, yet lightweight, Kapton™ voice coil former for sensitivity levels of up to 106 dB from 4,500 to 20,000 Hz.
Not only does this driver look as good as it sounds, it is also able to take a ton of power! Up to 120 watts of power handling are on tap with a 12 dB/octave crossover at 6,000 Hz to keep up with the most demanding professional audio, high output home audio, and high SPL car audio systems. A capacitor is included for protection from damaging frequencies at high power. Mounting hardware included.
Highlights:
- 1″ Bullet Super Tweeter
- Nominal Impedance: 4Ω
- Titanium diaphragm for an accurate and detailed response
- Screw fittings make rear mounting easy and simple
- Voice Coil Diameter: 1″
Specifications:
- Type: Super Tweeter
- Nominal Impedance: 4Ω
- Rated Power Handling (RMS): 60 Watts
- Program Power: 120 Watts
- Sensitivity (1W/1m): 106 dB
- Recommended Hi Pass X-Over: 6000 Hz (12 dB/Octave)
- Frequency Range at -10 dB: 4,500 - 20,000 Hz
- Voice Coil Diameter: 1.0" (38 mm)
- Voice Coil Wire: Aluminum
- Voice Coil Former Material: Kapton
- Diaphragm Type: Titanium
- Flux Density: 1.45 T
- Magnet Material: Neodymium
- Overall Depth: 2.58" (65.5 mm)
- Mounting Depth: 1.51" (38.5 mm)
- Overall Width: 2.19" (55.7 mm)
- Cutout Diameter: 1.69" (43mm)
- Weight: 1.10 Lbs
