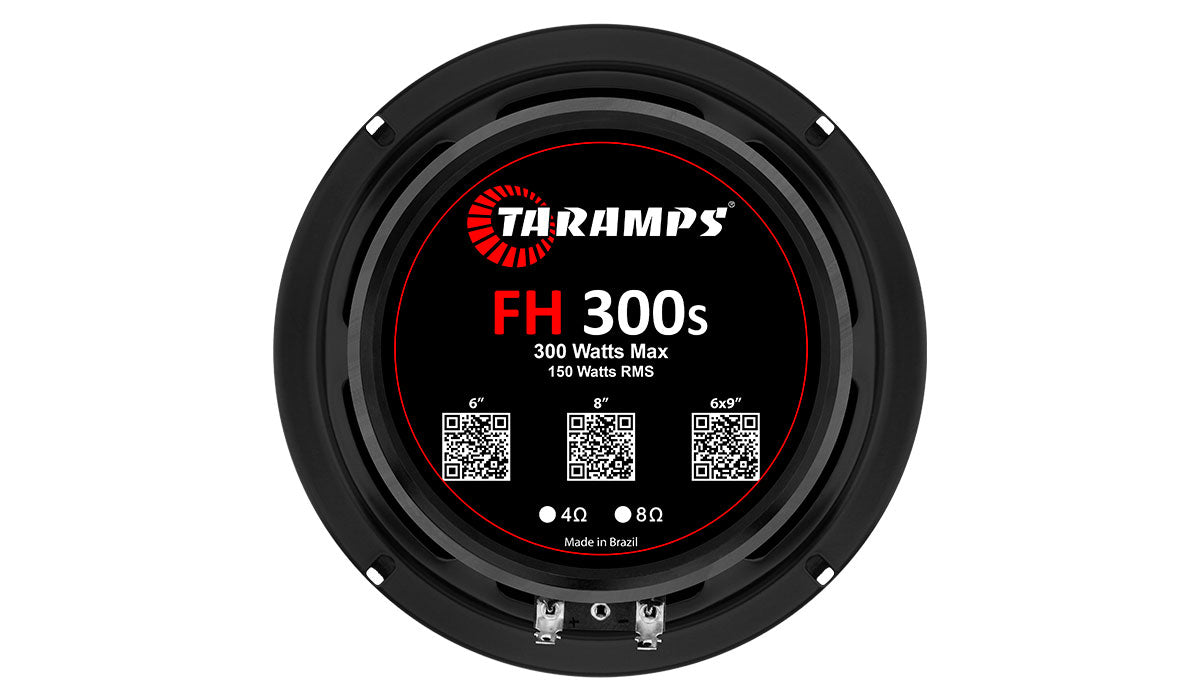

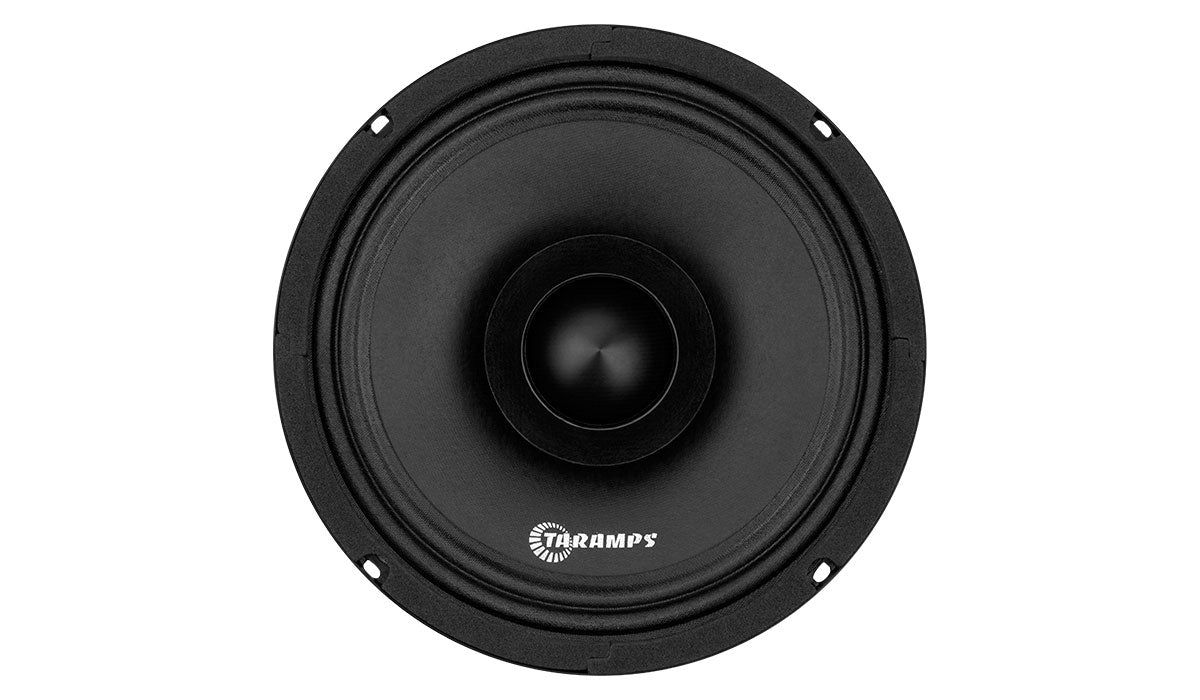

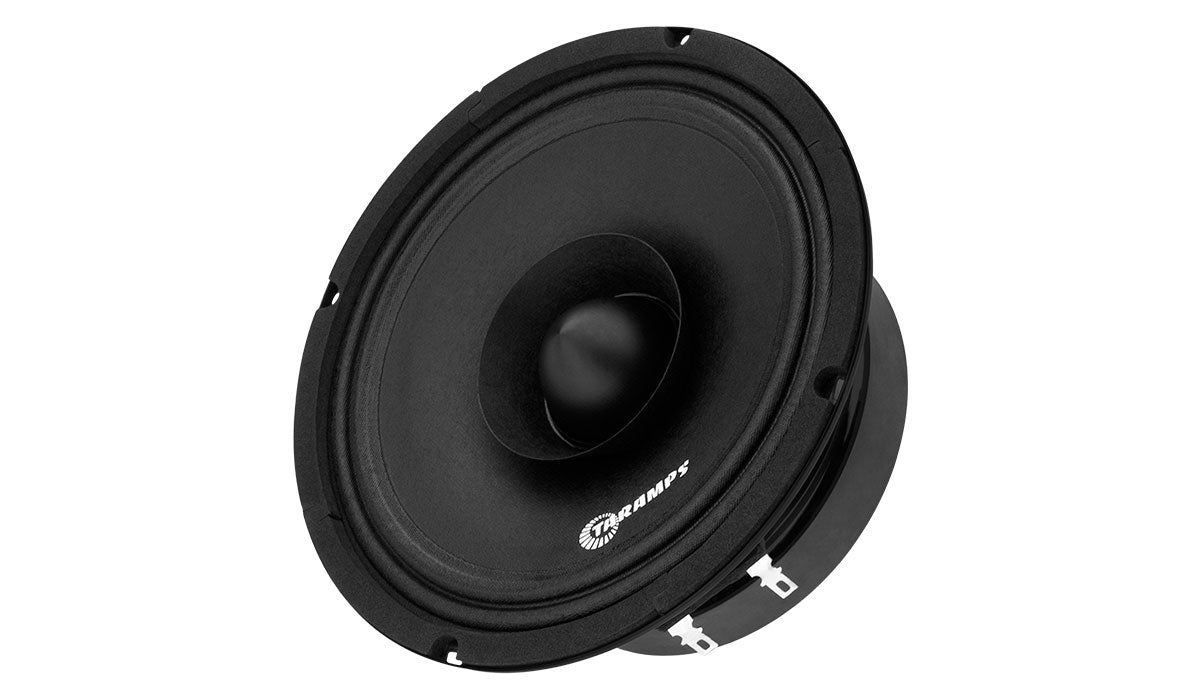

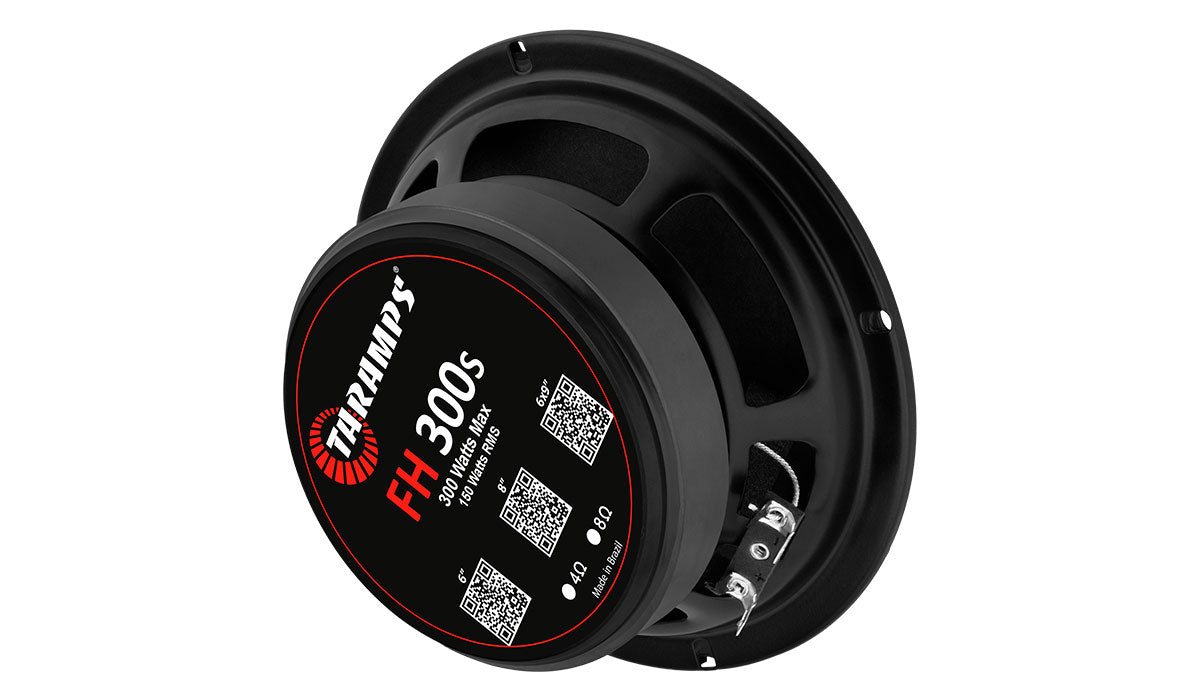

TARAMPS - 6" FH 300S 6-inch Loudspeaker (150 Watts RMS)
TARAMPS - 6" FH 300S 6-inch Loudspeaker (150 Watts RMS)
Regular price
$109.95 CAD
Regular price
$129.95 CAD
Sale price
$109.95 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
TECHNICAL INFORMATION
| RMS POWER | 150 W |
|---|---|
| MUSICAL PROGRAM POWER | 300 W |
| NOMINAL IMPEDANCE | 4 or 8 ohms |
| ELECTRIC RESISTANCE OF THE COIL WIRE | 3.0/5.6 ohms/VCC |
| NO (EFFICIENCY REFERENCE) | 1.258% |
| SENSITIVITY (@ 1W, 1M) - FREE-AIR | 93.015 dB |
| DIAPHRAGM MASS | 0.018 lbs (8.348g) |
| TOTAL MASS | 0.021 lbs (9.355g) |
| PRODUCT BL | 5.317 TM |
| MECHANICAL Q (QMS) | 3.791 |
| ELECTRIC Q (QES) | 0.657 |
| TOTAL Q (QTS) | 0.560 |
| COMPLIANCE (CMS) | 243.761u M/N |
| EQUIVALENT VOLUME (VAS) | 7.305 L |
| FREQUENCY RESPONSE | 90Hz ~ 18.000Hz |
| RESONANCE FREQUENCY | 105.393Hz |
| CONE EFFECTIVE AREA (SD) | 0.0145 Sq.m |
| CONE EXCURSION WITHOUT DISTORTION (X MAX) | - + 0.14" (3,7 mm) |
| FLOW DENSITY IN THE GAP | 10.700 GAUSS |
| NOMINAL DIAMETER | 6" |
| FERRITE MEASUREMENTS | 4.52" x 2.20" x 0.70" (115 x 56 x 18 mm) |
| COIL DIAMETER | 1.1/2" |
| COIL HEIGHT | 0.41" (10,5mm) |
| COIL WIRE MATERIAL | CCAW |
| COIL WIRE SECTION | Round |
| COIL SHAPE | *Kapton® |
| GAP HEIGHT | 0.25" (6,35mm) |
| HOUSING MATERIAL | Steel |
| FERRITE MATERIAL | Barium |
| WEIGHT | 4.32 lb (1.96 Kg) |
| VOLUME OCCUPIED IN THE CABINET | 0,60 Litros |
| EAN | 4 ohms: 7898556845236 8 ohms: 7898556845243 |
