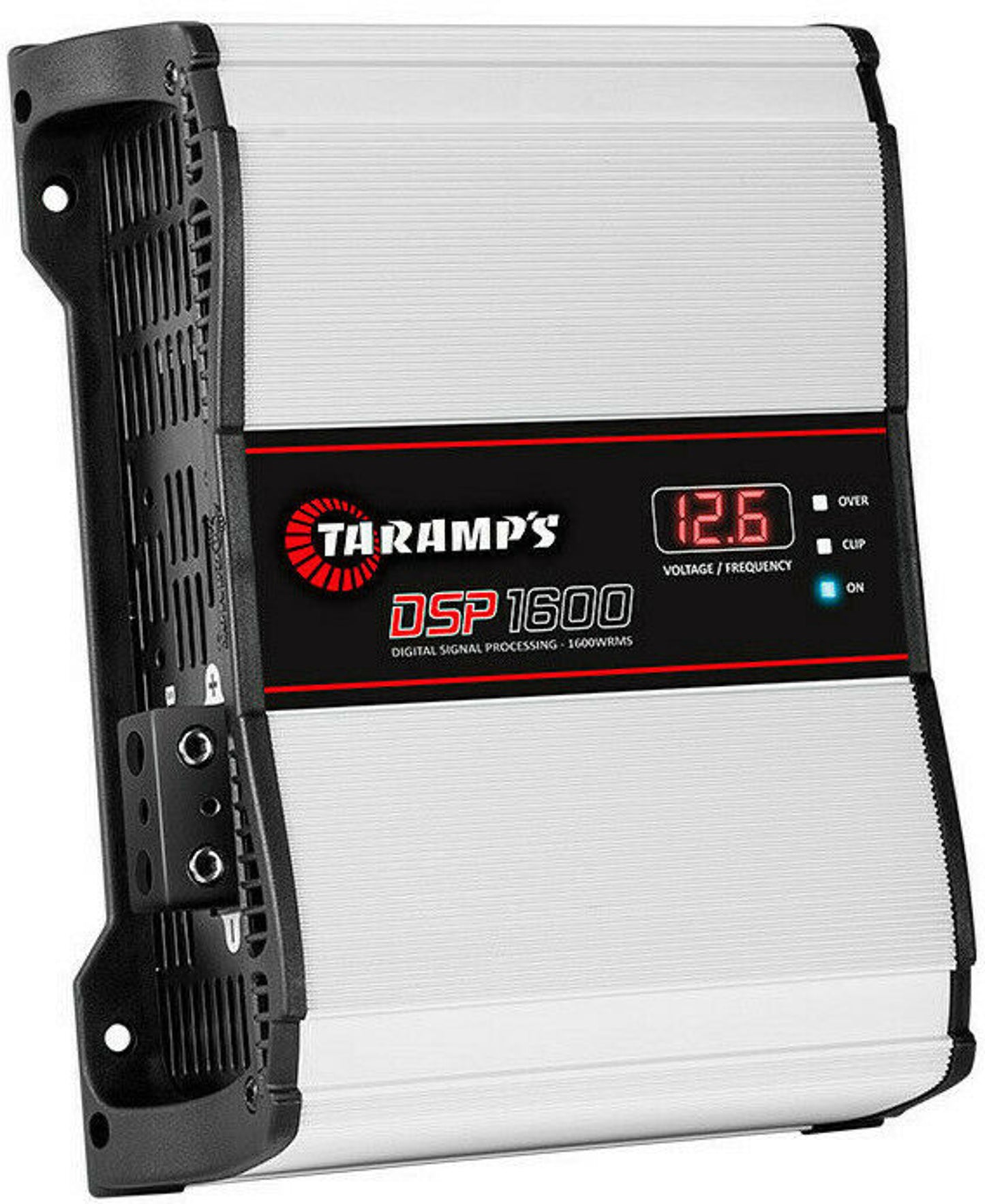

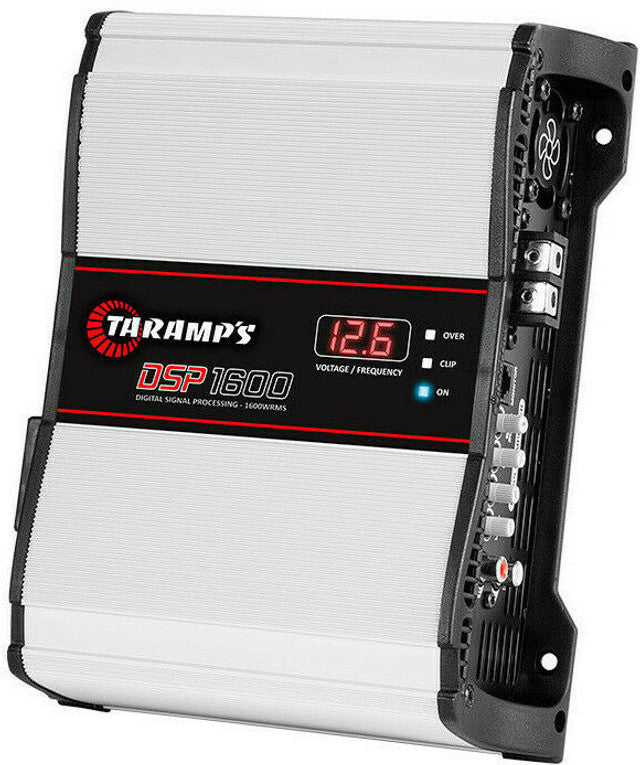

Taramps DSP 1600 1-ohm AMP

Taramps DSP 1600 1-ohm AMP

Regular price $329.95 CAD
Regular price Sale price $329.95 CAD
Sale Sold out
Shipping calculated at checkout.

Taramps DSP 1600 1-OHM Car Audio Amplifier 1600 Watts RMS Class D 1-Channel

Description

The DSP 1600 amplifier module is carefully developed with state-of-the-art technology, offering audio adjustments that are digitally structured by DSP (Digital Signal Processing), which improves automotive sound systems performance. Mono classified, it has a maximum power of 1.600 watts RMS, running at a 1-ohm impedance, with a single 1.600 watts RMS channel. This product is FULL-RANGE, operating on all frequencies in the right measure.

Technical information

Operation class
  • Class D
Number of Channels
  • 01
Maximum power
  • @ 12,6 VDC - 1 OHM: 1600W RMS
    @ 12,6 VDC - 2 OHMS: 1066W RMS
    @ 12,6 VDC - 4 OHMS: 620W RMS
    @ 14,4 VDC - 1 OHM: 1976W RMS
    @ 14,4 VDC - 2 OHMS: 1304W RMS
    @ 14,4 VDC - 4 OHMS: 751W RMS
Analog digital converter (ADC)
  • 24 bits, 96KHz, 110dB Dynamic Range
Digital Signal Processor (DSP)
  • 24 bits - 96KHz
Input Sensitivity
  • 230mV
Signal to Noise Ratio
  • >87dB
Frequency Response
  • 14Hz ~ 23KHz(-3dB)
    18Hz ~ 20KHz(-1dB)
Crossover high pass (HPF)
  • Full ~ 1KHz (-24dB/8ª) Variable
Crossover low pass (LPF)
  • 50Hz ~ Full (-24dB/8ª) Variable
Bass Boost
  • 0 ~ 10,5dB
Limiters/anti-clipping
  • Selectable 30%, 20% and 1%
Phase selector
  • 0º / 180º
Thermal Management
  • Smart Cooler(cooler triggered by temperature or audio, with two speeds)
Efficiency
  • 73%
Input Impedance
  • 18K OHMS
Output Impedance
  • 1 Ohm
Protection system
  • Short-Circuit to Output / High/Low Supply Voltage / Thermal Protection
Min. Supply Voltage
  • 9 VDC
Maximum Power Supply Voltage
  • 16 VDC
Consumption at rest
  • 1 A
Maximum music consumption
  • 87 A
Maximum consumption in sinusoidal signal
  • 174 A
Dimensions (H x W x D)
  • 9.05" x 2.87" x 6.97"
Weight
  • 4.4lb
