TIMPANO AUDIO TPT-ST71 (PAIR) CHROME SUPER TWEETER 8 OHM

SOLD AS A PAIR

Timpano’s TPT-ST71 bullet tweeter is ideal for two-way speakers and applications that require controlled directivity, high output, and smooth frequency response on high frequencies.

• Its diaphragm features the lastest technology on high frequency tweeters with a 1.5″ voice coil
• They handle 300 watts RMS to provide continuous high output levels
• High sensitivity output designed for pro audio systems

With an aluminum 40° conical dispersion horn, the bullet super tweeter is not your typical bullet tweeter. It has an average sensitivity of 108 dB and a smooth frequency response from 4,000 to 20,000 Hz using a ferrite ring magnet assembly driving an annular ring diaphragm made from mylar diaphragm.

Built In Crossover – Capacitor that acts as a crossover to attenuate low end frequencies that might otherwise harm the super tweeters.

These tweeters are capable of generating high end frequencies at extremely loud volume, to keep up in the high SPL systems. Built with high strength magnet and a mylar diaphragm are designed to reproduce the brightest and crispest sound.

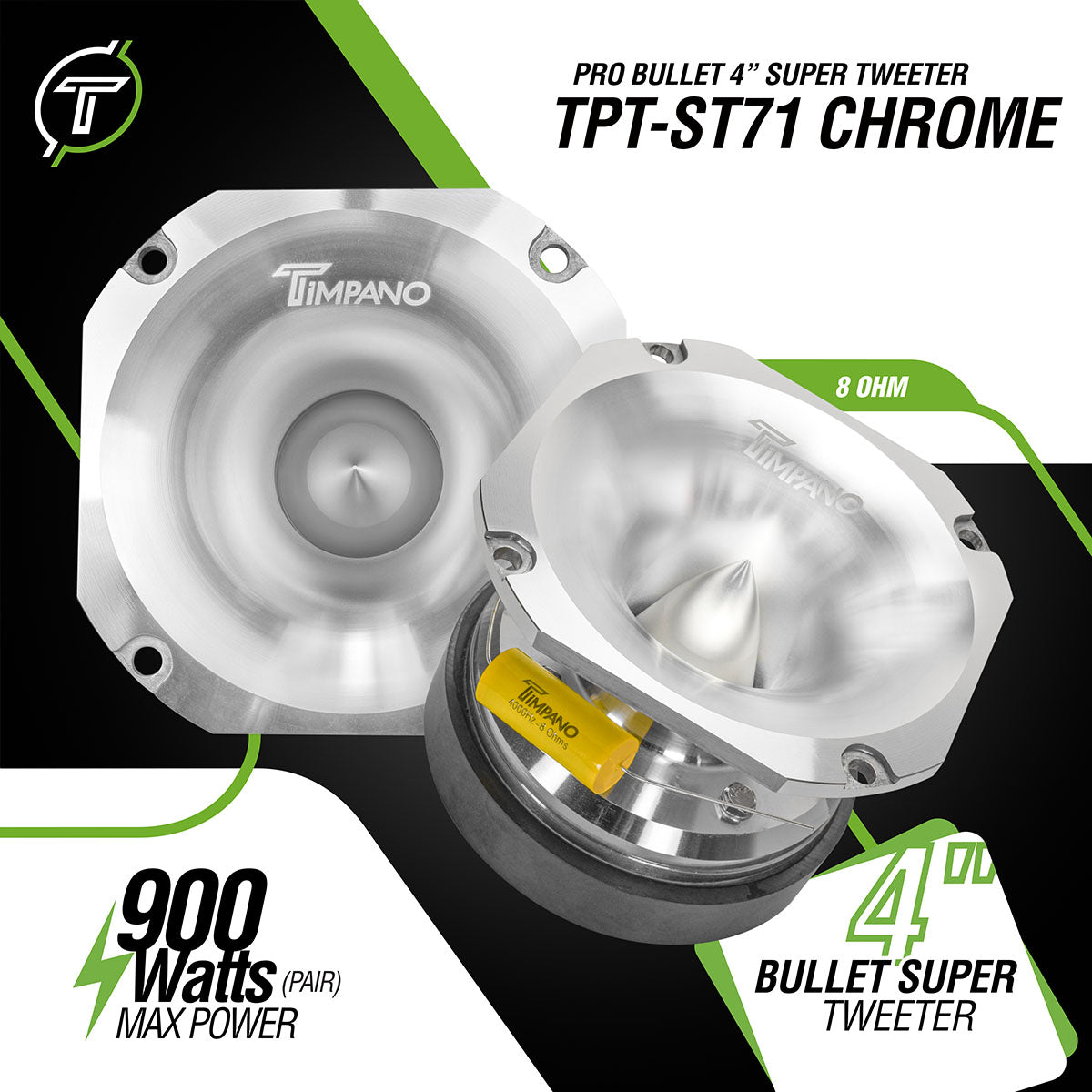

Specs:
900 Watts Max Power per pair / 450 Watts each
300 Watts RMS Power per pair / 150 Watts each
Impedance: 8 Ohm each tweeter
Sensitivity: 108 dB
Frequency Response: 4,000 – 20,000Hz
Mylar Diaphragm with a 1.5″ voice coil
Recommended High Pass Filter on TPT-SP4BT DSP, Based on Power per Tweeter
7000 Hz under 225 Watts of Amplifier RMS Power with 18dB Slope
5000 Hz under 150 Watts of Amplifier RMS Power with 12dB Slope

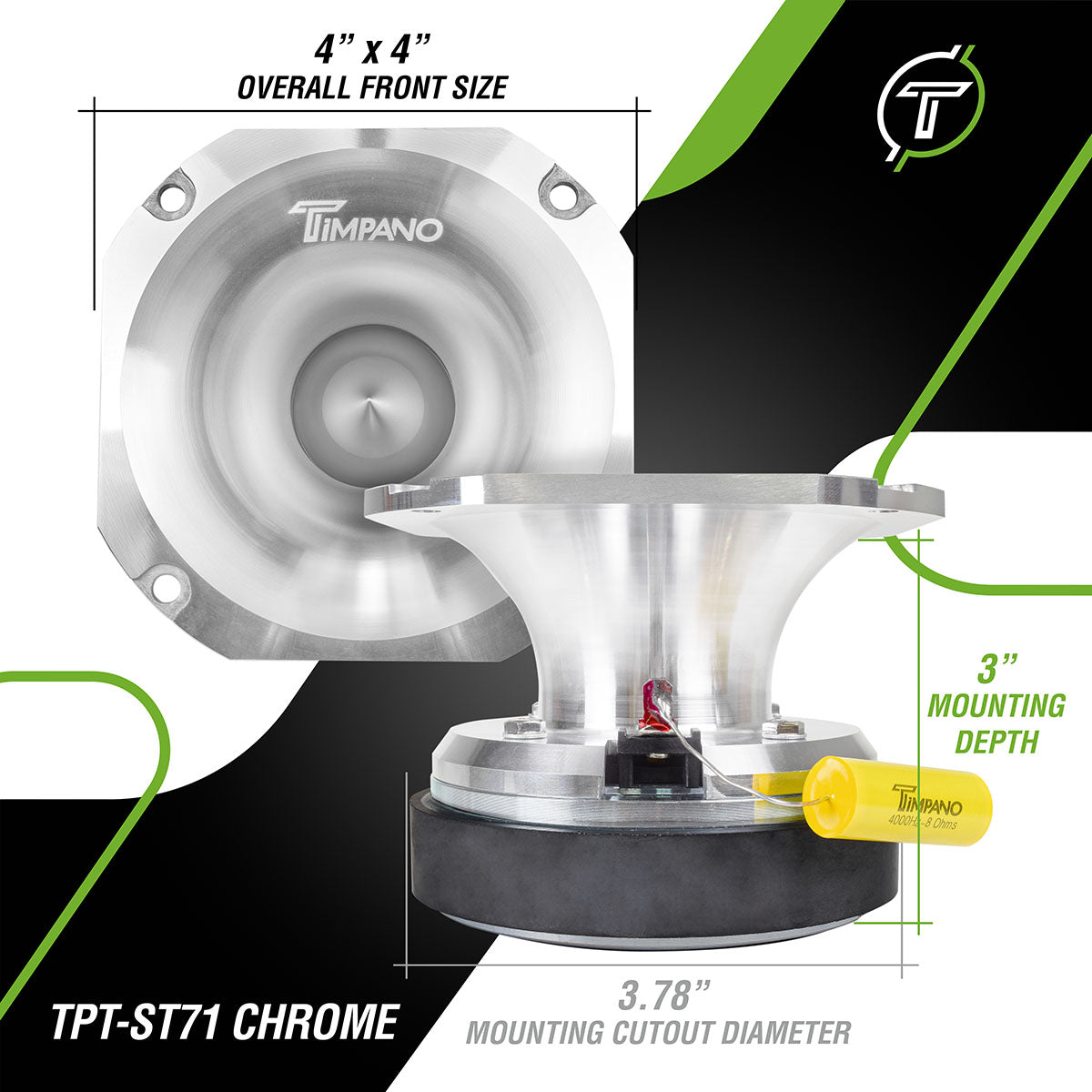

Sizing:
Mounting 3”
Mounting Cutout Diameter: 3.78″
Overall Size: 4″ x 4″ x 3.17″
Weight: 3 Lbs each tweeter
Accessories Included:
HPF Capacitor attached per tweeter
1x Timpano Logo Sticker
