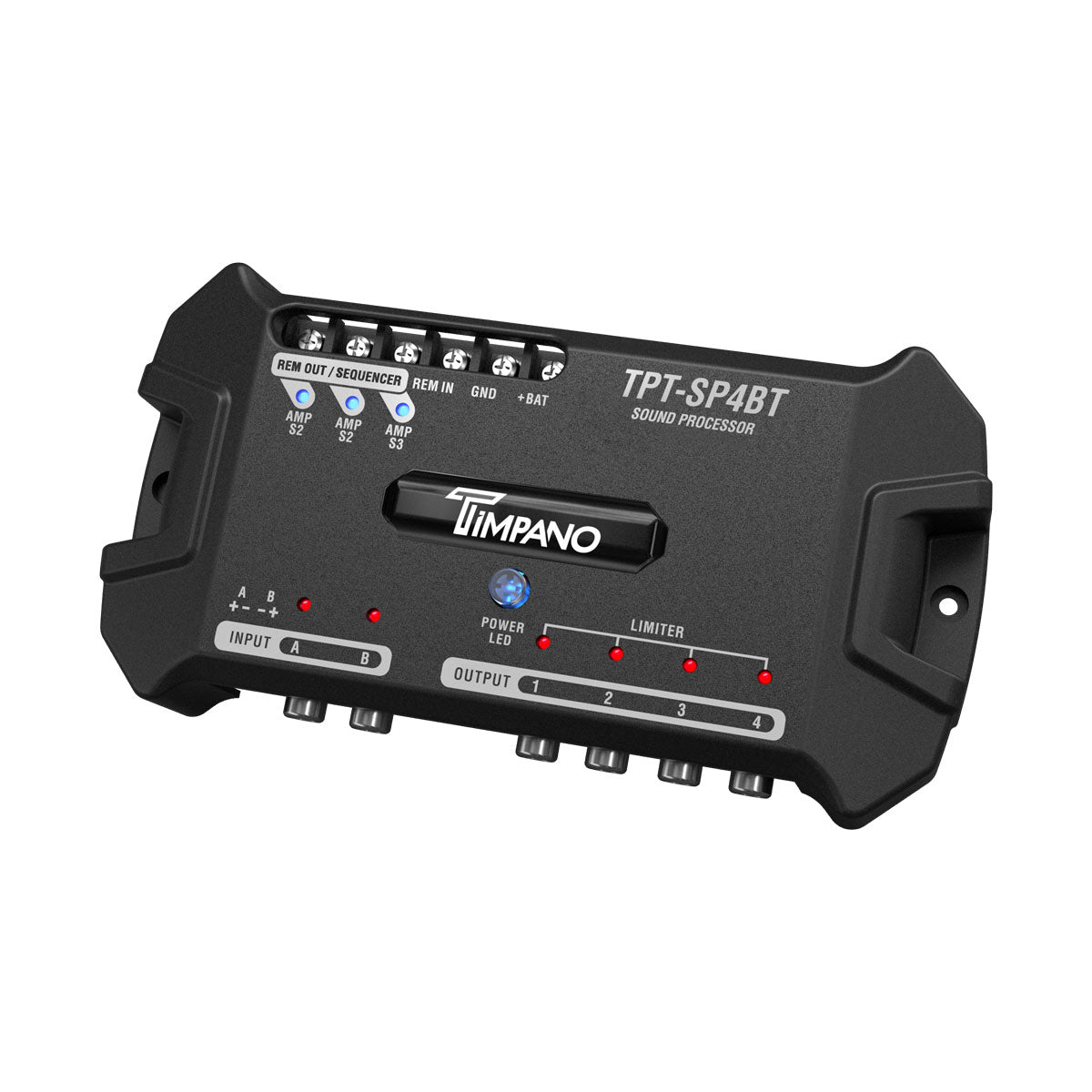

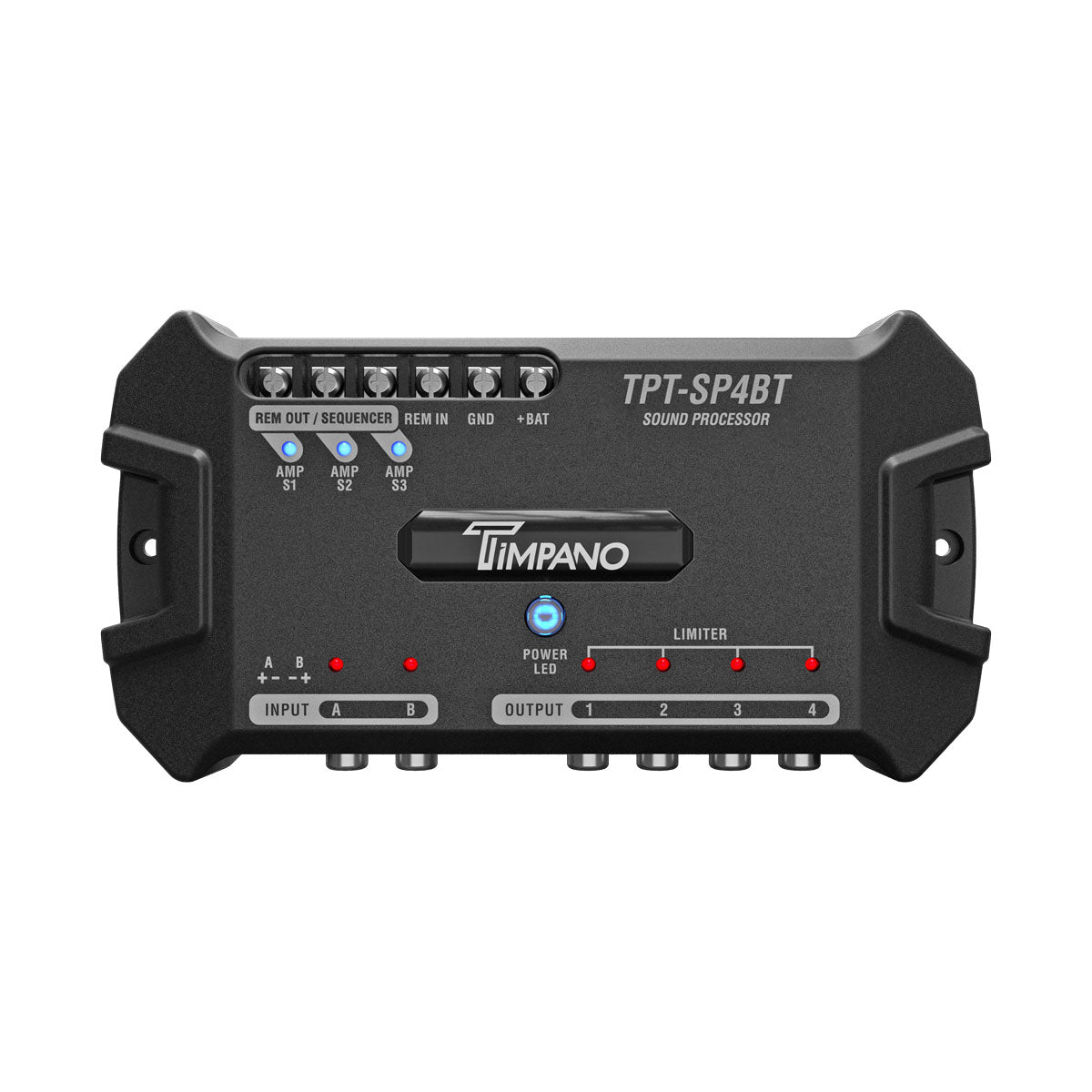

Timpano TPT-SP4BT Bluetooth Processor
Timpano TPT-SP4BT Bluetooth Processor
Couldn't load pickup availability
The compact TPT-SP4BT is signal processor ( DSP ) controlled by bluetooth connection direct from your phone or tablet. This powerful tool allows users to optimize the performance of their custom sound system, regardless of whether they are using a aftermarket unit or factory radio.
The processor’s information can be viewed and configured remotely using smartphones with Android or iOS systems. Its digital signal processor allows real-time modification of equalization, crossover filters, alignment, gain control, phase inversion, limiter, input/output routing, and features such as: Battery Voltmeter, Frequency Generator, Frequency Sweep and Pink Noise.
Its exclusive sequencer feature (SEQUENCER) makes it possible to configure the programmed startup and shutdown of up to three products from the remote startup connections (S1, S2, and S3).
In your device’s app store (Play store), search for our TIMPANO TPT-SP4BT app or use the links
below to be directed to the app page.
Once installed, open the app to configure and use your audio processor.
Download the app to your device
Technical Specifications
| Number of channels | Input: 2 x RCA (A+B) or 2 x HIGH INPUT (A+B) Output: 4 (1, 2, 3, 4) |
| Graphic equalizer: | 15 Bands (gain ±12dB) |
| Crossover with freq. Variable: | Butterworth: 12/18/24/36 dB/8ª Linkwitz-Riley: 12/18/24/36 dB/8ª |
| Output gain: | -45dB ~ +15dB per output |
| Frequency generator: | 10Hz ~ 22kHz and Level -60 ~ 0dB |
| Battery voltage monitor: | Current, minimum and maximum voltage |
| Frequency response: | 10Hz ~ 22kHz @ 0dB |
| Max. Input voltage: |
RCA: 5,6 Vpp (+8,2 dBu) HIGH INPUT: 15 Vpp (+18 dBu) |
| Max. Output voltage: | 5,6 Vpp (+8,2 dBu) |
| Power supply: | 10V ~ 15V DC |
| Max. Output current SEQUENCER: | 180 mA per output |
| Rated current consumption: | 170mA @ 12.6V DC |
| Range: | 15 meters* |
| Compatibility: | Android 5.0 or higher iOS 12 or higher |
| Dimensions (H x W x L): | 1.3” x 3.8” x 7.4” |
| Weight: | 0.40 Lb |
Our crossovers are designed to provide the perfect frequency distribution to ensure the clarity and peak efficiency throughout your custom system.
